IP VoIP SIP AA-600/SM5x Module

The combination of IP Audio + IP Video + SIP VoIP technologies in Networking concentrated in a compact module to overcome the limits of creativity!


IP Audio IP Video VoIP SIP Multicast Web Relay PoE - 12/24V Alarm Input RS-485

The AA-600 modules are two-way communication systems. In the simplest application it is sufficient to connect a microphone, a speaker and a button to create a complete VoIP SIP PoE communication system integrated in the LAN with 2 internal relays that can be remotely activated.

Basic configuration
Speaker + AA-600 Module + Microphone
ad697-ap3 speaker
aa697 microfono

For more realizations other accessories are available:

telecamera ad697
AA697-KV tastiera antivandalo
AA-697 montaggio su barra DIN

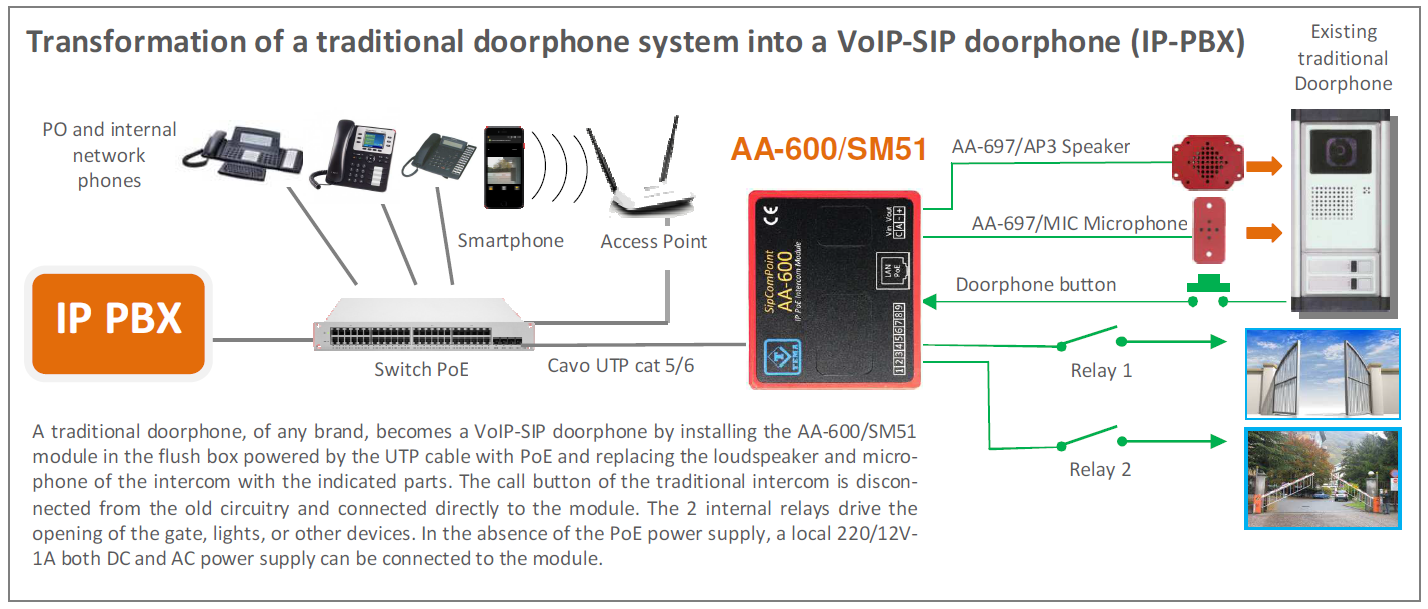

Integration in telephone and security systems

AA-600 integrates perfectly with VoIP telephony systems (IPPBX) with SIP protocol that can be registered as a normal VoIP phone or in Peer-to-Peer (P2P) mode without a PBX.

Included APP for iOS and Android, PC Sofware

APPs are available for iOS/Android Smartphones, software for Windows PCs is provided for the management of 1 to 16 modules. For larger systems, ADAM management software is available for up to 1,000 modules.

Total Management via LAN, integrated Web Server

Programming, configuration, loading and listening of audio files, firmware update, audio volume adjustment, backup, configuration reset, restart.

Recorded messages

Nella SD card all’interno sono registrati suoni e messaggi per l’invio automatico o a comando specifico. I messaggi sono personalizzabili dall’utente e caricabili da remoto via LAN.

Innovative Features and Performances

apparecchi personalizzati di comunicazione su una rete LAN

Technical features

LAN, protocols TCP/IP Network 100BaseTx, SIP 2.0
Degree of protection IP20
Power supply PoE, PoE Injector or Power supply
PoE 802.3af class 0 12,95W
Power supply (Opz.) 230Vac/12-24Vdc-1-2A
Messages/Sounds pre-recorded in the SD internal memory
Technology IMX25 400MHz processor
Memory 256MB Ram, Micro-SD Flash 8GB
Contact rating of the 2 internal relays max 30Vdc – 1,5A
Container material ABS
Operating temperature from -20° to +55°C
Storage temperature from -20° to +65°C
Umidity up to 90%
Installation table, wall, on standard DIN bar
Dimensions 76,5x62x32,5mm
Weight 170gr
Basic Audio Amplifier 2x2W “D” Class
Additional amplifier 20W “D” Class (10W PoE)
Bandwidth 80 – 15.000Hz
Connection SIP Server (IPPBX) or P2P (Peer To Peer)
Microphone omnidirectional electret 30Hz-18KHz
RTP Multicast audio Streaming G.711/G722/16-44,1KHz
Audio Communication Unidirectional and Bidirectional

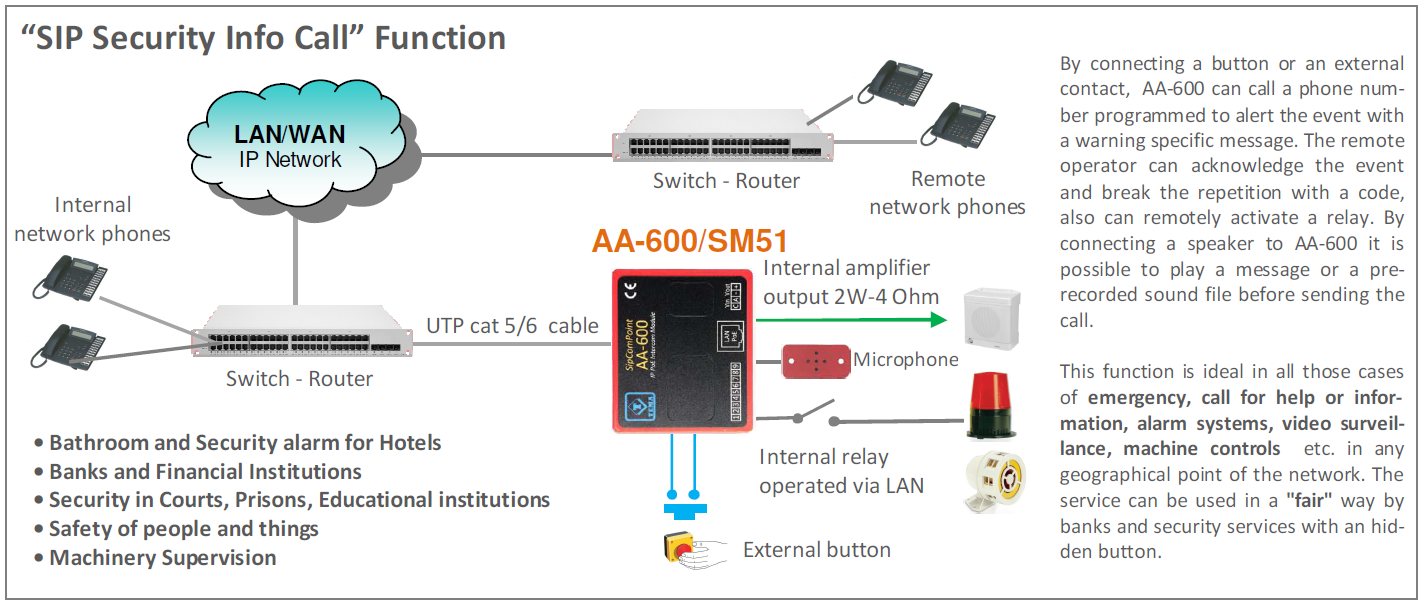

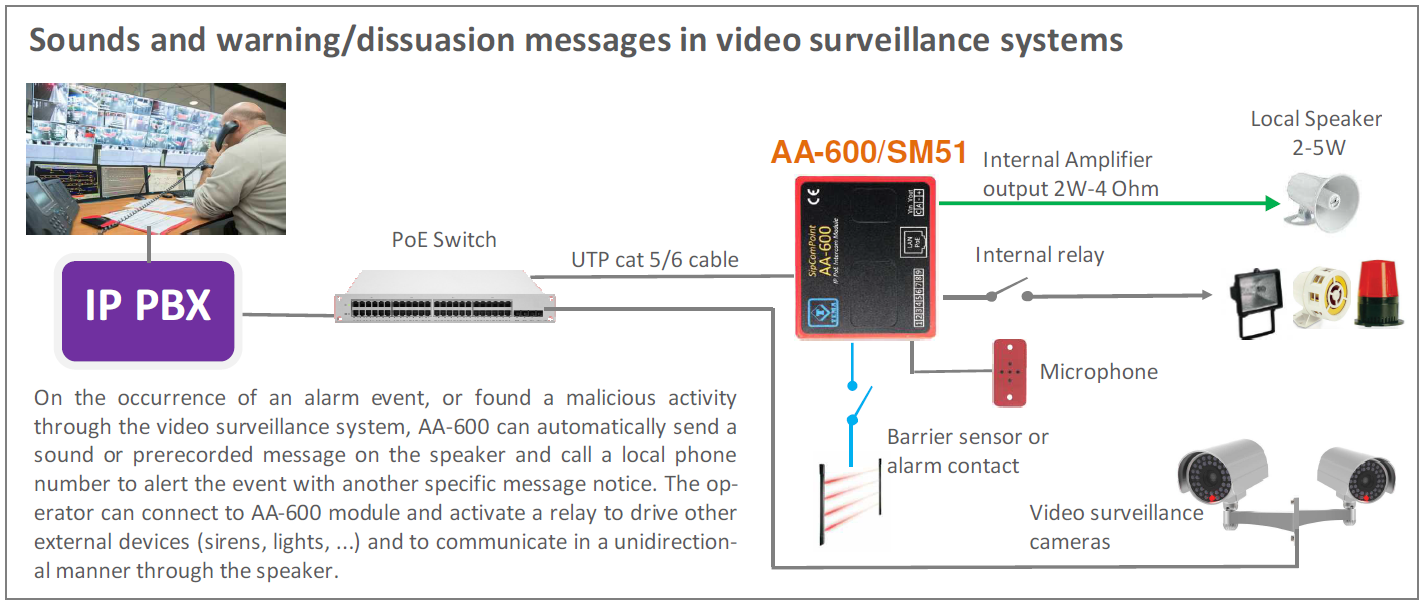

Inputs from external commands 1 (Alarm) + 1 (Call)
Mobile APP iOS, Android
Acoustic signals tones, pre-recorded messages
Signalings Call LED
Programming user-friendly web interface and password
Warranty 2 years
Compatibility CE, ROHS
NOTE: the modules are designed to be placed in cabinets or in another closed and protected container.
AA-600 standard versions (The devices can be customized on request for specific applications)
AA-600/… SM51 SM51V SM52 SM52V
Internal Amplifier 2+2W
Microphone, speaker, button sockets
External Keyboard/Keypad socket

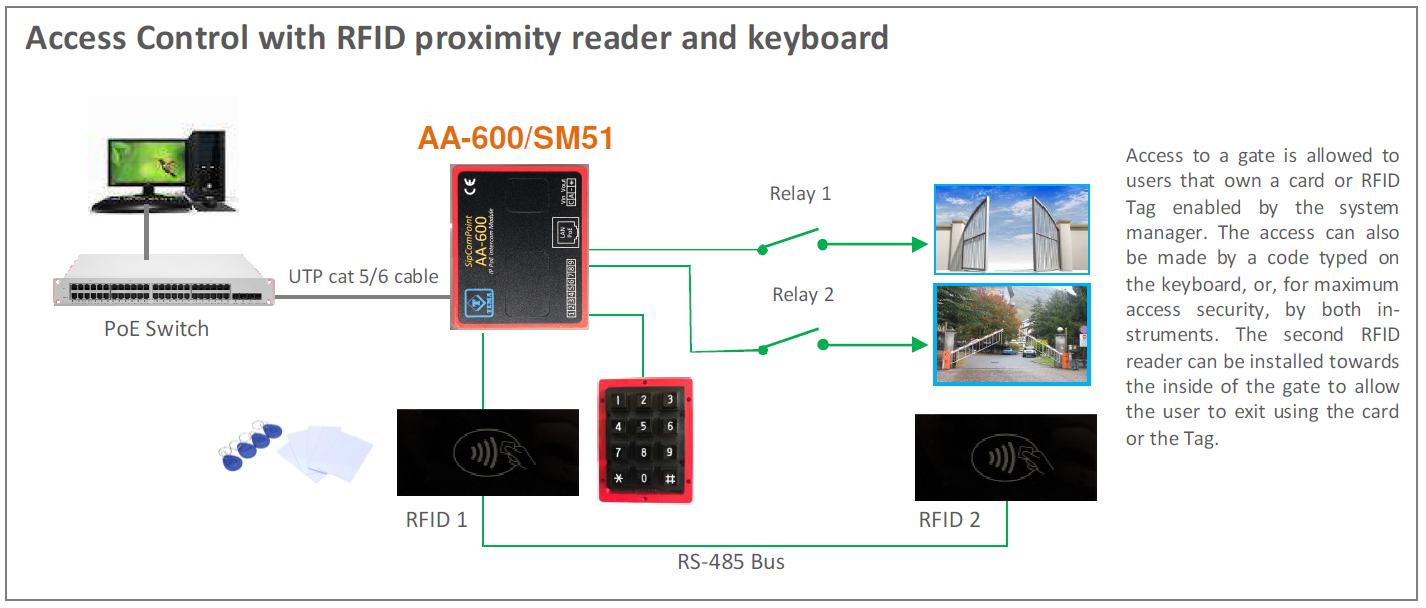

RS485/RFID port socket
PoE 803.af internal power supply
External Vdc/Vac power supply input
Internal slot for 10-20W Amplifier
Inputs from external alarm contact 1 1 1 1
Internal relays 2 2 2 2
Socket for external USB camera
Socket for LED illuminator

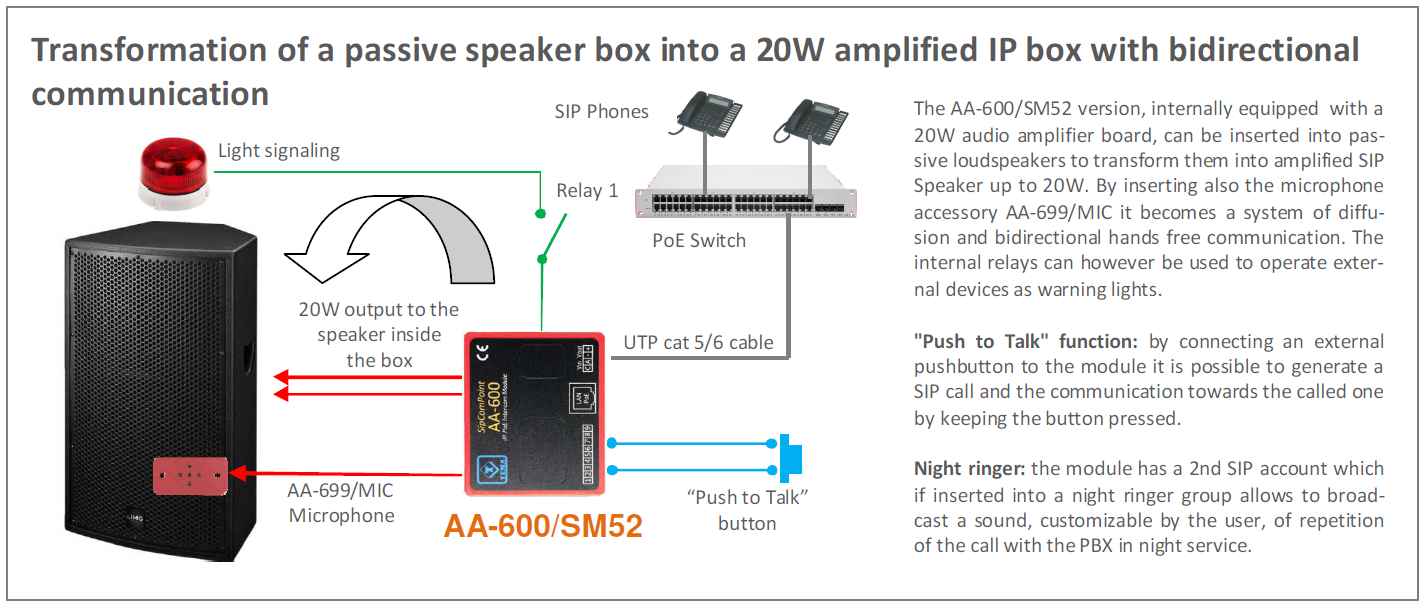

2nd internal amplifier 20W (10W PoE)

Optionals and accessories

aa697 microfono

High sensitivity omnidirectional microphone, cable for call button, in protected ABS case, wired with connector

ad697-ap3 speaker


Waterproof 8 Ohm-3W loudspeaker in ABS plastic enclosure, incorporating a highefficiency LED indication of call in progress, pre-wired with cable and connector

telecamera ad697

USB HD camera in ABS enclosure wired with 25cm cable and 10-WAY connector


USB HD camera and illuminators board 10 white LEDs, 25cm cable and 10WAY connector

AA697-KV tastiera antivandalo
AA-697/KP – AA-697/KV

Backlit vandalproof keypad for indoor/outdoor use in ABS case wired with 25cm cable and 10WAY connector. Also available in indoor version with plastic buttons

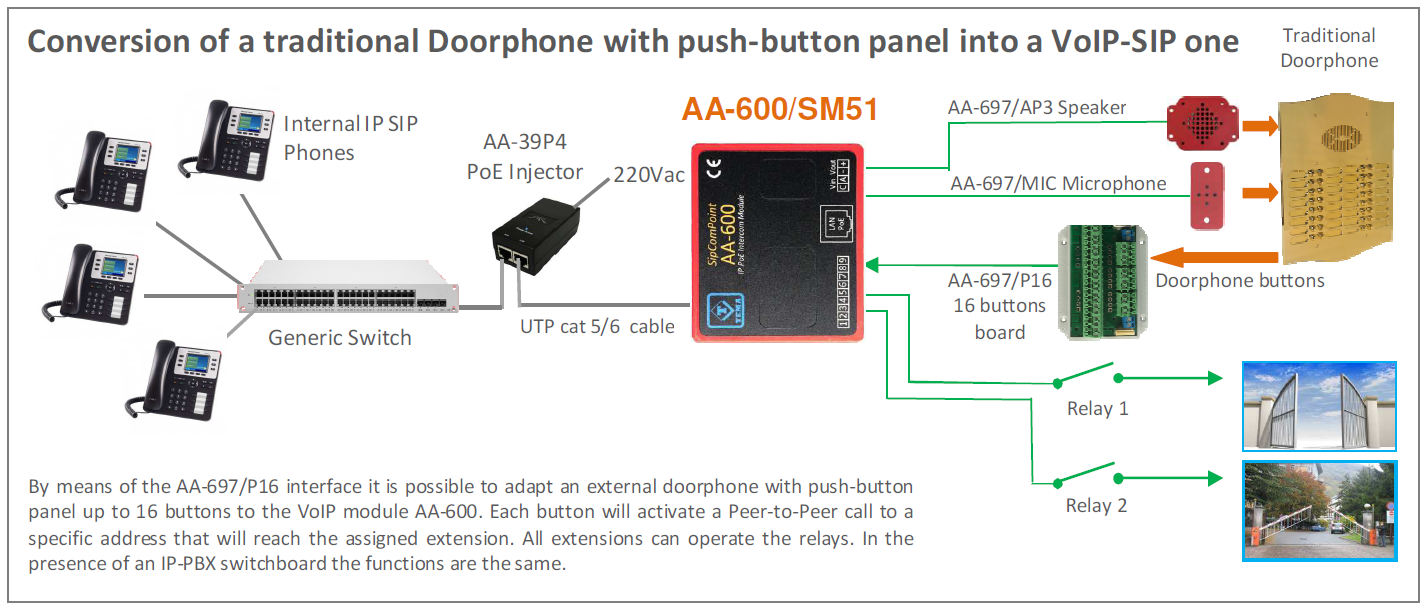

16 additional buttons interface board. The board is an alternative to the keyboard


Steel metal button with 25cm cable


Plug Power Supply 220Vac/12Vdc-1,0A


Flash warning lights with Xeon lamp or with high brightness LEDs, with a call in progress they add a light signal to the acoustic signal


IP VoIP SIP phones and video phones for internal stations and VoIP/Multicast calls

AD696/CT Console multizona

Multicast and telephone SIP P2P multi-function Console and multi-zone from 4 to 256 zones

NOTE: for additional products and accessories see also the series SipComPoint and SipComStage.

AD696/BM base, AD615/S Encoder IP

Microphone base with Chime, Multicast analog/digital encoder

AA-697/W4 – W10

4 and 10 way connectorized cables, length 25cm/200cm, free end on the other side

AA-39D1A, AA-39E3, AA-39E6V

AA-39D1A - P. Supply DIN 220Vac/15Vdc-1,0A
AA-39E3 - P. Supply DIN 220Vac/24Vdc-1,5A
AA-39E6V - P. Supply DIN 220Vac/24Vdc-2,5A


250Vac/16A/4KVA power relay, AC/DC 12V/24V control, 1 change-over contact, LED indicator, for loads up to 230Vac-4.000W


PoE injector 230Vac/48Vdc 0,5A

AA-697 montaggio su barra DIN


Kit for mounting the modules on a DIN rail consisting of an Abs coupling + 50mm galvanized bracket + 2 screws

AD696/CT4 - CT8

PoE console with cardioid electret microphone for SIP and Multicast calls, 12-28 Zones


Audio Domain & Access Management Software for Windows PC with Multi-Zone console

Smartphone APP

iOS, Android, Windows

Device Scan

Portable software to search for all Tema systems on the network, with display of the IP ad-dress, MAC address, serial number S/N, device name, description. It is possible to quickly change the IP address and Subnet Mask or set the system in DHCP.


ADAM Audio Domain & Access Management
Advanced software for complete management of all terminals and multi-zone microphone consoles

Learn more >

Announcements Paging and sending of Multicast audio

ADAM is also an Encoder in Multicast channels capable of transmitting announcements from a local microphone connected to the PC on different priority multicast channels, or programmed reception zones, thus transforming the PC into a multi-zone microphone console for the transmission of announcements or pre-recorded audio files. The sending operation can be performed in a few seconds and is interrupted with a simple click.

Audio Quality

The audio of the digital transmission can be chosen in a range up to 44.1KHz for maximum sound quality over LAN.

Software developed in Italy

The software is entirely developed in Italy by TEMA which guarantees the upgrade of the performances and the support over time.

ADAM is a system without limits

No limit to the number of ADAM software that can be installed on PCs on the LAN network, over 1,000 manageable terminals. ADAM transforms a PC into a control console for the entire IP Audio system, and in perfect SIP integration with the telephone and security system.
