Outdoot IP SIP Projector

AD634 SIP projector speaker is part of a series of TEMA speakers to be connected in a LAN for the PA (Public Address) paging of ads, speech and music, in offices, factories, public places and outdoor.
The internal circuits incorporate a PoE power supply (Power over Ethernet) for direct power over UTP cable, but also allow input from an external power supply at 230Vac/12-24Vdc. The two power supply types can coexist in order to increase the safety of the service. AD634 is a bidirectional communication system with built-in microphone with local listening function and speaker-control functionality.

 Applications, Target

  • Video surveillance: warning deterrence to malicious people under video control area
  • Companies, Offices, Factories, Warehouses, Industry
  • Warehouses, Garage, Supermarket, Parking
  • Outdoor public areas
  • Alarm and warning systems
  • Hospitals, Schools, Railway Stations, Airports, Ports

 Packing List

  • 1 IP VoIP SIP AD634 sound projector
  • 1 Paper manual
  • 1 CD-ROM with complete documentation
  • 1 3mt Patch Cord LAN UTP Cable for pre-installation test functions

Overview

Power Amplifier Technology

A high efficiency and low consumption double D-Class Amplifier can generate a maximum output power of 40W (2x20W) 8 ohms with high sound quality. The amplifier is selfprotected against overload and short circuit output power. It is provided a second auxiliary output which can be brought to another passive speaker to better distribute the output power or to generate a 100V-20W PA line.

Pre-recorded messages

In the internal SD card are recorded sounds and messages for automatic or command sending onto speaker, also automatically at pre-set times.

iOS and Android APP

Free download APP are available for smartphones with operating systems iOS and Android. With these applications it is possible to operate with the IP speakers and launch announcements even from smartphones.

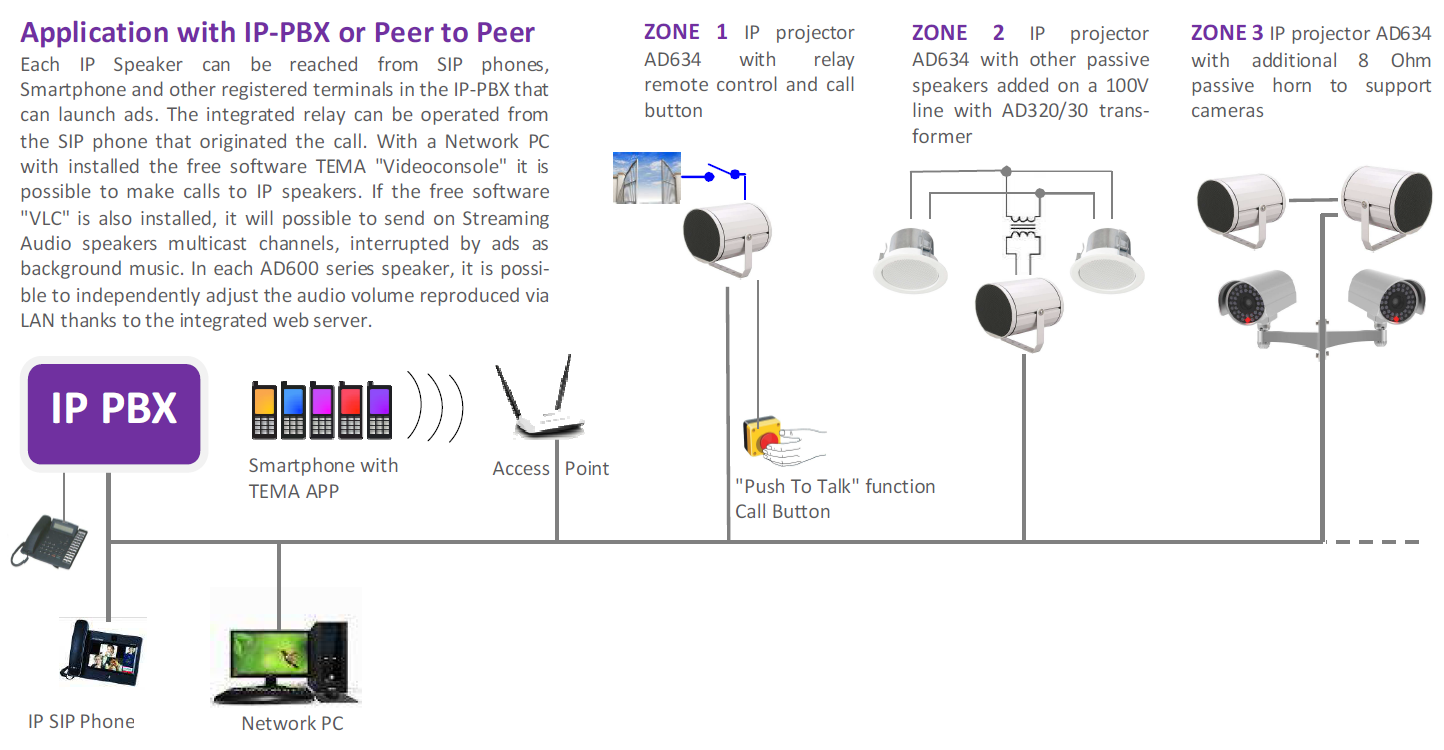

Integration with VoIP SIP phone systems

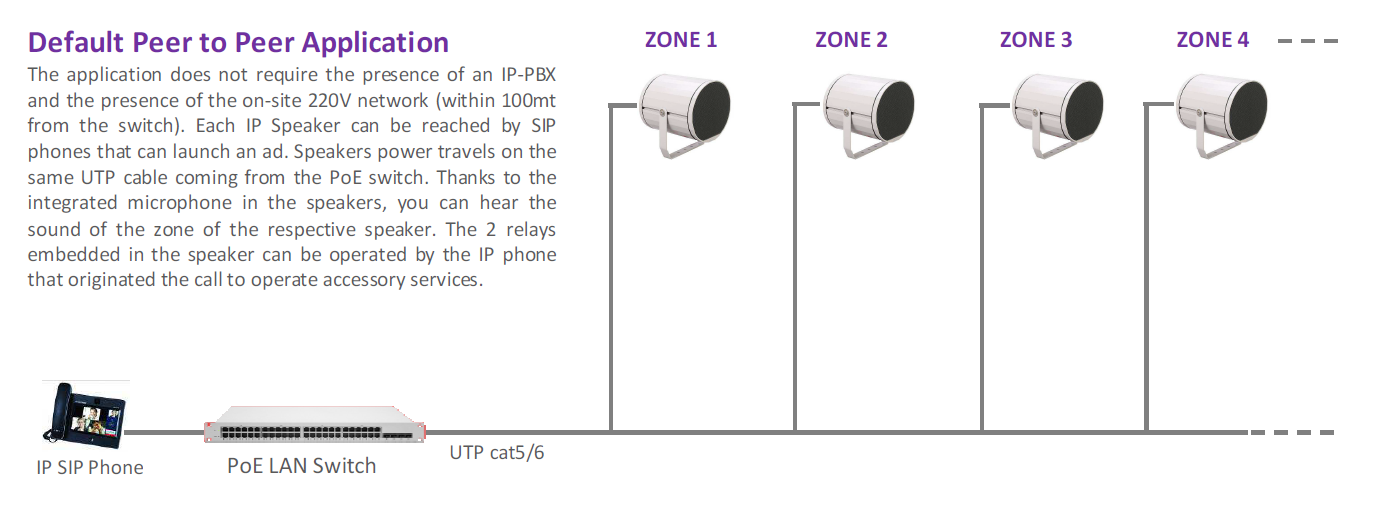

AD634 can be perfectly integrated with VoIP telephone systems (IP-PBX) with SIP protocol and can be registered as a regular VoIP phone or P2P (Peer to Peer) without a PBX.

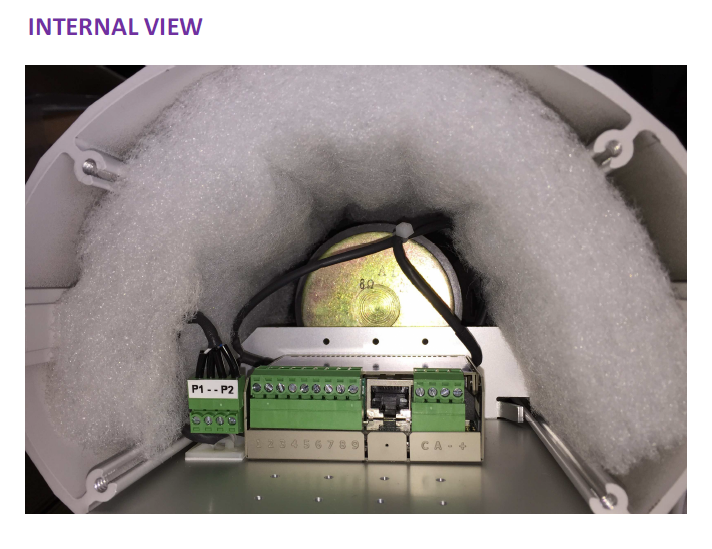

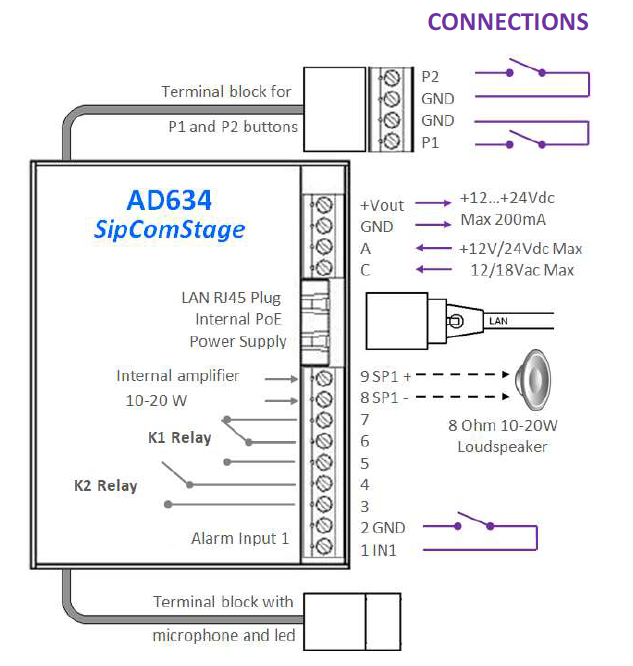

Innovative features and performances

Technical features

LAN, protocolsTCP/IP Network 10/100BaseTx, SIP 2.0
Grade of protectionIP65
Power SupplyPoE, Injector PoE or ext power supply
PoE802.3af class 0 12,95W
External Power Supply (Opt.)230Vac/12-24Vdc-1-2A
SecurityPassword access, activity logs
Inputs from external alarm commands1
Inputs for diversified call buttons2
Contact rating of the 2 internal relaysmax 30Vdc – 1,5A
TechnologyIMX25 400MHz processor
Memory256MB Ram, Micro-SD Flash 2GB
Housing materialaluminum and Abs
Operating temperaturefrom -20° to +55°C
Storage temperaturefrom -20° to +65°C
Umidityup to 100%
Installationwall mount

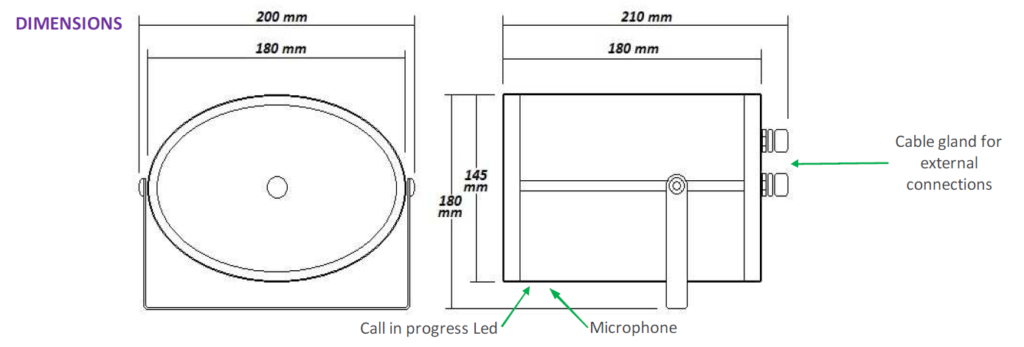

DimensionsDiam. 240x290mm
Weight2,1 Kg
Audio Amplifier40W (Ext. Pwr Supply) Class “D” (10W PoE)
Acoustic unit impedance8 Ohm
Audio Bandwidth150 – 15.000Hz
Acoustic pressure (SPL)105 dB A (1KHz a 1 metro)
Internal Microphoneomnidirectional electret 30Hz-18KHz
Multicast RTP Audio StreamingG.711 a-Law, μ-Law, G722
Linear 16kHz, 24kHz, 32kHz, 44,1kHz
Audio CommunicationUnidirectional and Bidirectional
Additional speakers1 passive speaker 8 Ohm 20W
Messages/Soundspre-recorded into the internal SD
ConnectionSIP Server (IPPBX) or P2P (Peer To Peer)
Smartphone APPiOS, Android
Acoustic signalingcall tones, ads Ding-dong
Visual signalingActive call led
Programminguser-friendly web interface and passwords
Originentirely developed and manufactured in Italy
Warranty2 years, possibility of extension (option)
CompatibilityCE, ROHS

Applications

Optionals

AA-39E3
DIN Switching Power Supply 220Vca/24Vcc-1,5A
AA-39E6V
DIN Switching Power Supply 220Vca/24Vcc-2,5A
AA-39P4
PoE Injector 230Vac/ 48Vdc-12,95W
AA-36
Power relay repeater 230Vac/16A – 4KW
AD320/30
DIN transformer 100V-30W audio line
AD32

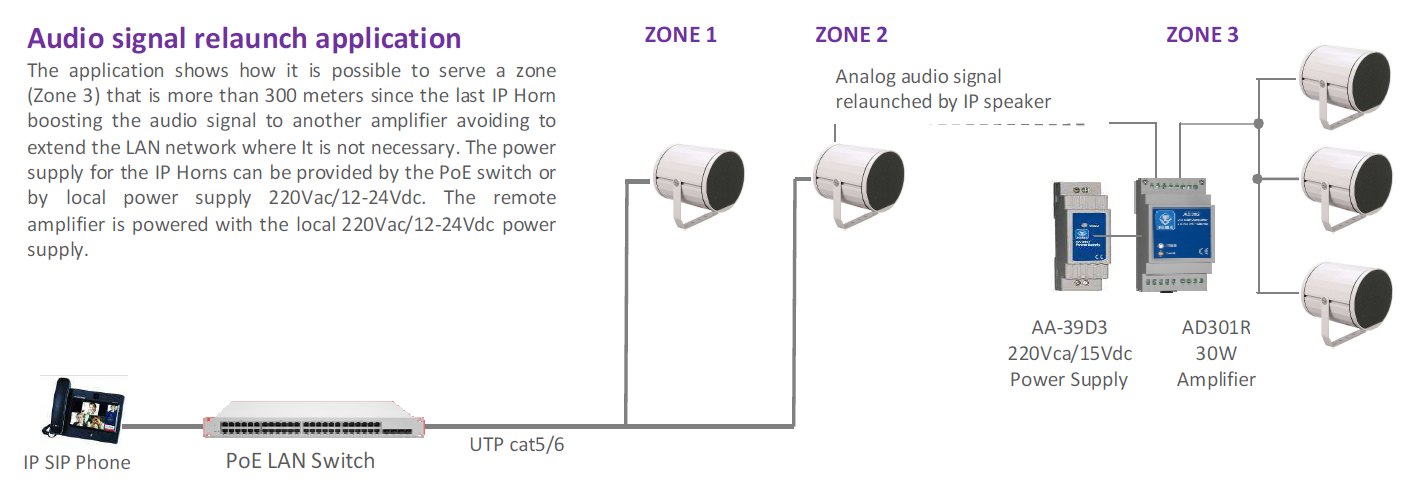

Audio signal isolation transformer, ideal for signal relaunch to remote amplifiers
AD330/xx
Passive speakers 8 Ohm or 100V various power
