Indoor/Ceiling IP SIP Speaker with Flameproof rear cover
The SIP Ceiling Speaker AD633C is part of a series of TEMA speakers to be connected to a standard LAN for the PA (Public Address) paging of ads, speech and music, in offices, factories, public places.
The internal circuits incorporate a PoE (Power over Ethernet) power supply for direct power over the UTP cable, but also allow input from an external power supply at 230Vac / 12-24Vdc to extend the maximum sound power output. The two power supply types can coexist in order to increase the safety of the service.
AD633C is a two-way communication system with a built-in microphone with the dual local listening function and control of the speaker functionality.
Applications, Target
Packing List

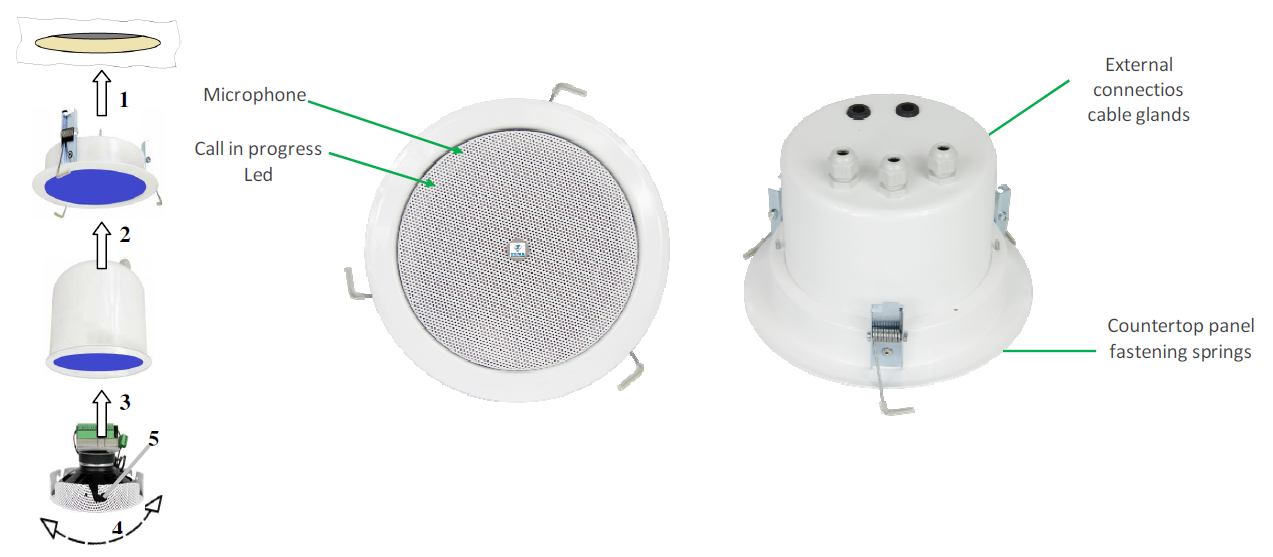

Overview
Power Amplifier Technology
A high-efficiency and low-consumption double D-class amplifier can generate a maximum power of 12W (2x6W) at 8 ohms with high audio quality. The amplifier is self-protected against overloads and short circuits output power. There is a second auxiliary output that can be carried to a second passive speaker to better distribute the audio power or generate a 100V-6W PA line.
Pre-recorded messages
In the internal SD card are recorded sounds and messages for automatic or command sending onto speaker, also automatically at pre-set times.
iOS and Android APP
Free download APP are available for smartphones with operating systems iOS and Android. With these applications it is possible to operate with the IP speakers and launch announcements even from smartphones.
Integration with VoIP SIP phone systems
AD633C can be perfectly integrated with VoIP telephone systems (IP-PBX) with SIP protocol and can be registered as a regular VoIP phone or P2P (Peer to Peer) without a PBX.
Innovative features and performances
- Launch of PA ads from any phone by calling the account of the IP SIP Speaker
- Security code from keyboard to start the announcement
- 2nd SIP accounts night call repeater function, sounds files freely customizable
- Output for 2nd passive speaker 6W 8 Ohm to extend the served area or to generate a 100V-6W audio line
- Double internal audio amplifier 2x6W (maximum output power using external power supply)
- PoE (Power over Ethernet) 802.af standard, only one cable connection
- 2 internal relays for external devices drives via LAN

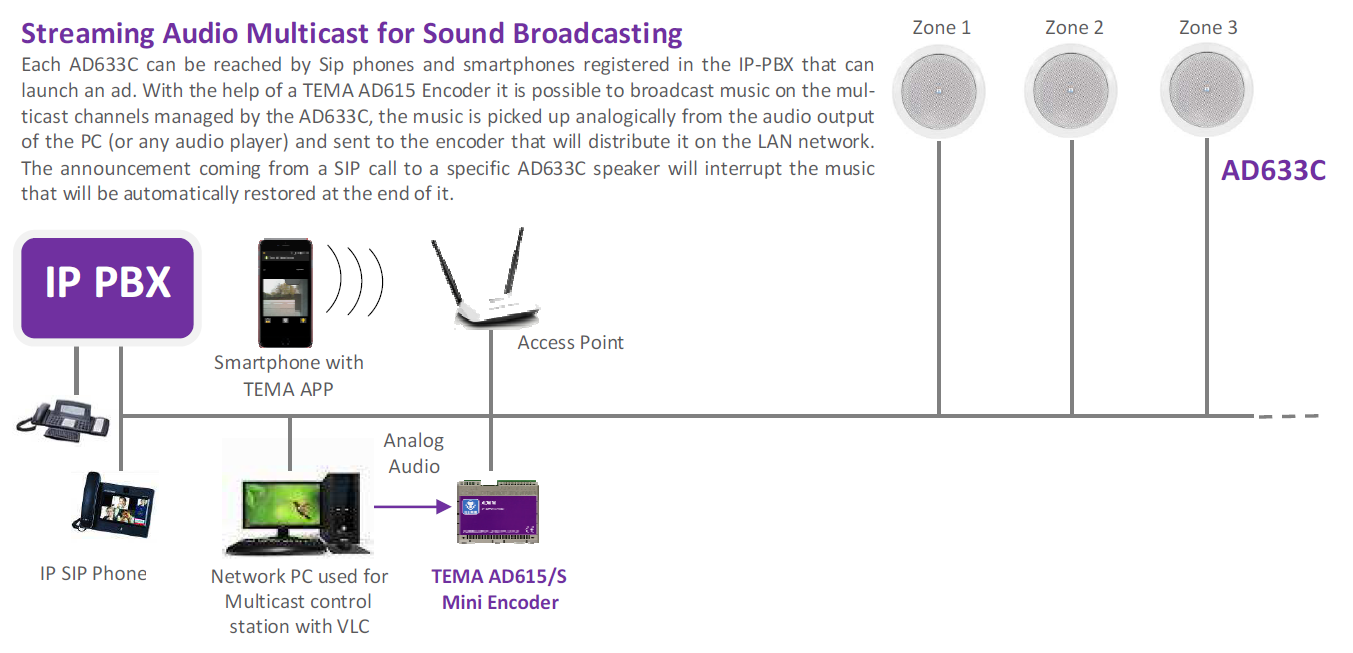

- 16 Multicast channels for broadcasting background music, silenced by ads, also in high quality (Linear Codec 44,1kHz)
- Volumes adjustable separately for all audio channels Multicast/Ads/Ringtone
- Internal microphone for environment listening (Monitor) and normal bidirectional communication
-
1 alarm trigger input for one of the alternate functions:
- Generate a phone call and sends a message of alert (SIP SECURITY INFO CALL)
- Pre-recorded announcements launch from the speaker (Notice/Deterrence)
- "Push to Talk" feature for phone communication driven by local external button (not included)
- 2 inputs for external call buttons to 2 programmable SIP numbers or IP addresses

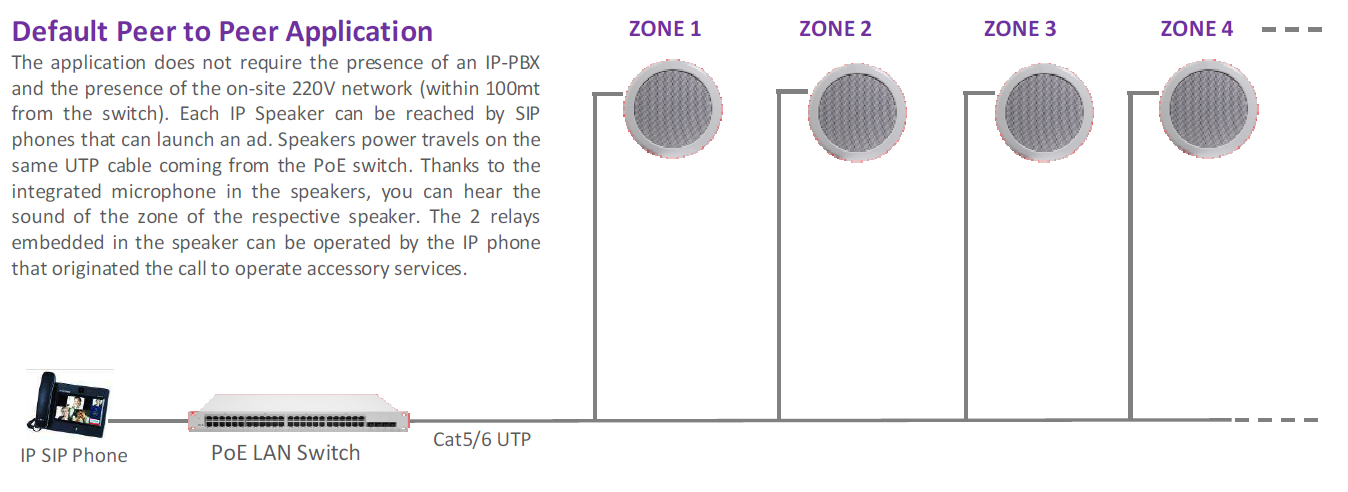

- LAN P2P (Peer to Peer) operation even without PBX
- Remote programming via integrated LAN Web Server
- Compatible with all SIP standard IP-PBXs on the market
- IP54 grade of protection, flameproof rear cover
Technical features
| LAN, protocols | TCP/IP Network 10/100BaseTx, SIP 2.0 |
| Grade of protection | IP54 |
| Power Supply | PoE, Injector PoE or ext power supply |
| PoE | 802.3af class 0 12,95W |
| External Power Supply (Opt.) | 230Vac/12-24Vdc-1-2A |
| Security | Password access, activity logs |
| Inputs from external alarm commands | 1 |
| Inputs for diversified call buttons | 2 |
| Contact rating of the 2 internal relays | max 30Vdc – 1,5A |
| Technology | IMX25 400MHz processor |
| Memory | 256MB Ram, Micro-SD Flash 2GB |
| Housing material | painted metal |
| Operating temperature | from -20° to +55°C |
| Storage temperature | from -20° to +65°C |
| Umidity | up to 100% |
| Installation | ceiling mount |
| Dimensions | Diam. 220x160mm |
| Weight | 1,8 Kg |
| Audio Amplifier | “D” Class (10W PoE) 12W (Ext. Pow.) |
| Acoustic unit impedance | 8 Ohm |
| Audio Bandwidth | 80 – 20.000Hz |
| Acoustic pressure (SPL) | 105 dB (1KHz at 1 meter) |
| Internal Microphone | omnidirectional electret 30Hz-18KHz |
| Multicast Audio Streaming | G711μ, G711a, G722, L16 16 / 44 kHz |
| Audio Communication | Unidirectional and Bidirectional |
| Additional speakers | 1 passive speaker 8 Ohm 6W |
| Messages/Sounds | pre-recorded into the internal SD |
| Connection | SIP Server (IPPBX) or P2P (Peer To Peer) |
| Smartphone APP | iOS, Android |
| Acoustic signaling | call tones, ads Ding-dong |
| Visual signaling | Active call led |
| Programming | user-friendly web interface and passwords |
| Origin | entirely developed and manufactured in Italy |
| Warranty | 2 years, possibility of extension (option) |
| Compatibility | CE, ROHS |

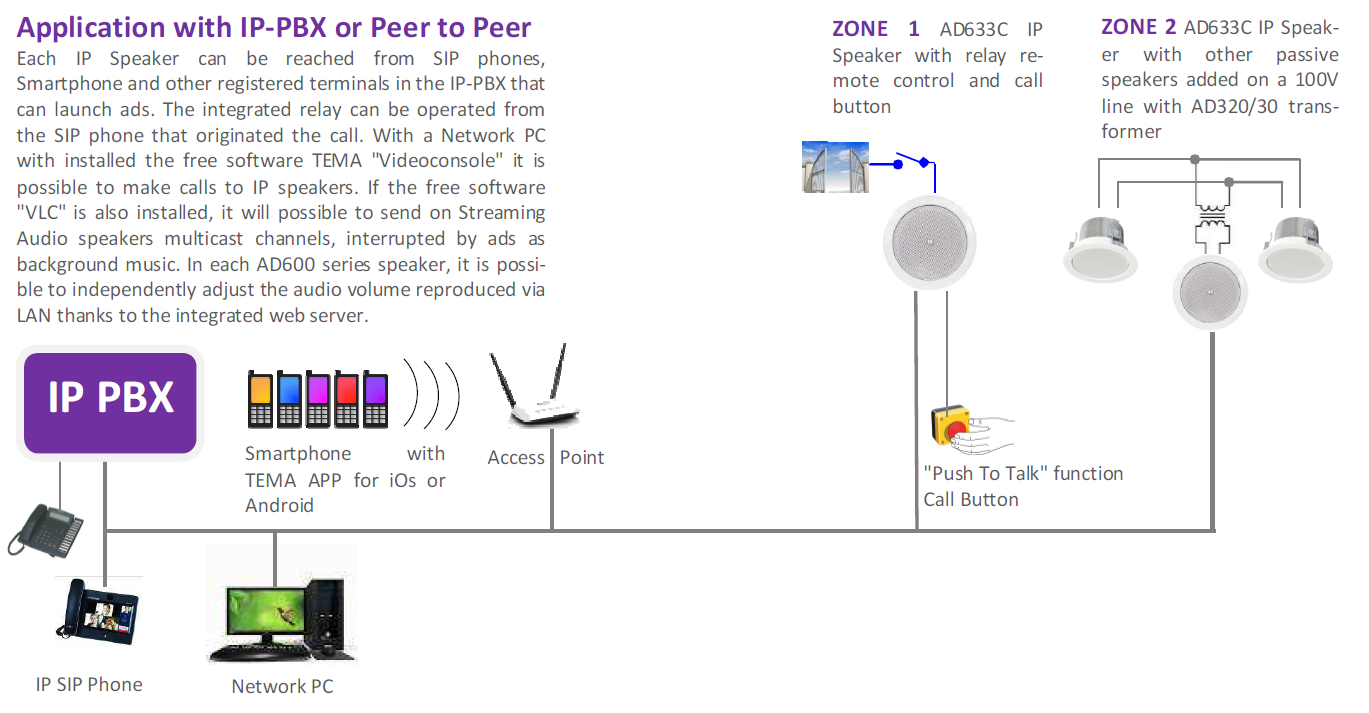

Applications
Optionals
Switching Power Supply 220Vca/12Vcc-1,0A
DIN Switching Power Supply 220Vca/15Vcc-1,0A
PoE Injector 230Vac/ 48Vdc-12,95W
Power relay repeater 230Vac/16A – 4KW
Flash lights with light bulb Xenon or High Brightness LEDs. Ideal for be controlled by IP speaker relays SIP series AD630, with a call in progress they add a light signal to the acoustic signal
DIN transformer 100V-30W audio line
Audio signal isolation transformer, ideal for signal relaunch to remote amplifiers
Built-in/ceiling passive speaker 8 Ohm 12W with Transformer 12/6/3 W response 80Hz - 20KHz, Diameter 200x160 mm
Passive speakers 8 Ohm or 100V various power
Software
Advanced software for complete management of all terminals and multi-zone microphone consoles
iOS, Android, Windows
