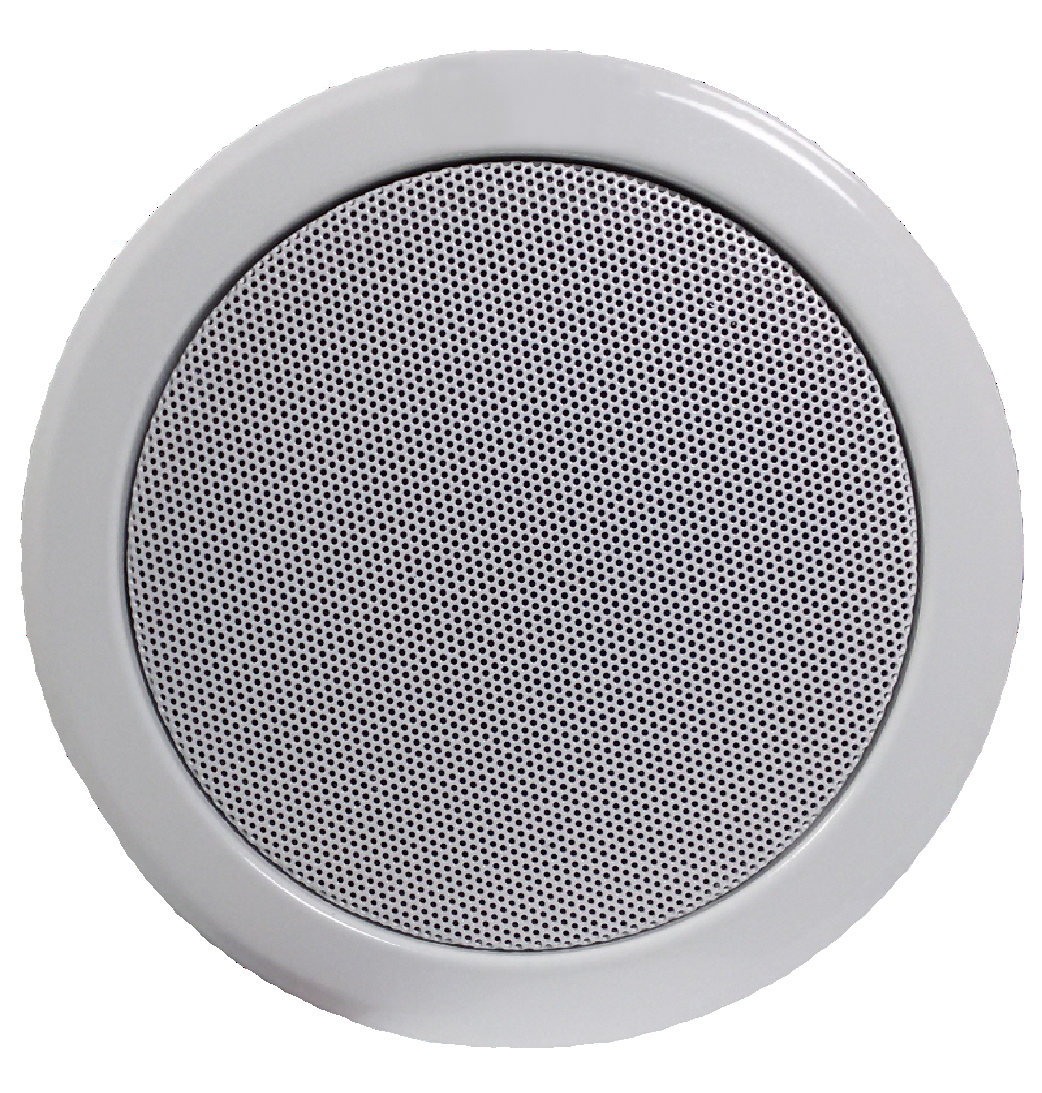

Indoor/Ceiling IP SIP Speaker 12W

The SIP Ceiling Speaker AD633 is part of a series of TEMA speakers to be connected to a standard LAN for the PA (Public Address) paging of ads, speech and music, in offices, factories, public places. The internal circuits incorporate a PoE (Power over Ethernet) power supply for direct power over the UTP cable, but also allow input from an external power supply at 230Vac / 12-24Vdc to extend the maximum sound power output.

The two power supply types can coexist in order to increase the safety of the service. AD633 is a two-way communication system with a built-in microphone with the dual local listening function and control of the speaker functionality.

 Applications, Target

● Companies, Offices, Factories, Warehouses, Industry
● Warehouses, Garage, Supermarket, Parking
● Public areas
● Alarm and warning systems
● Hospitals, Schools
● Railway Stations, Airports, Ports

 Packing List

   ● 1 IP VoIP SIP AD633C ceiling speaker
   ● 1 Paper manual
   ● 1 CD-ROM with complete documentation

Overview

Power Amplifier Technology

A double Class “D” Amplifier with high efficiency and low consumption can generate a maximum output power of 12W (2x6W) 8 ohms with high sound quality. The amplifier is selfprotected against overload and short circuit output power. It is provided a second auxiliary output which can be brought to another passive speaker to better distribute the output power or to generate a 100V-6W PA line.

iOS and Android APP

Free download APP are available for smartphones with operating systems iOS and Android. With these applications it is possible to operate with the IP speakers and launch announcements even from smartphones.

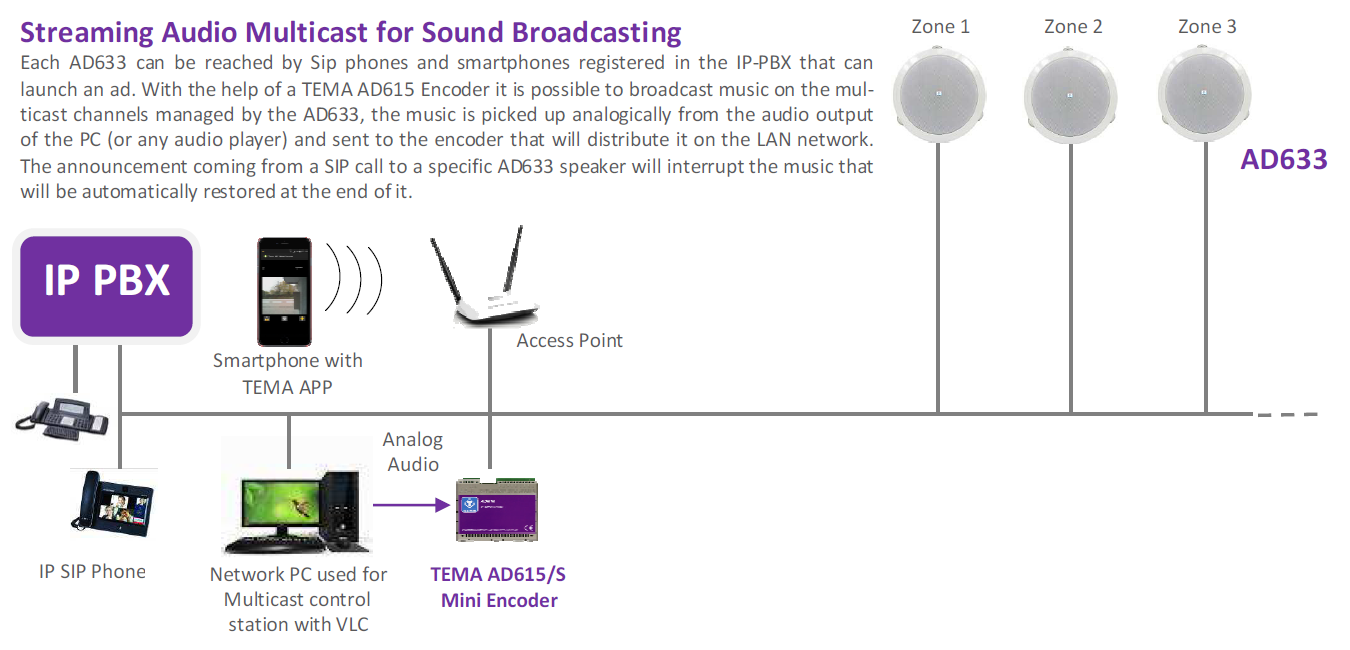

Integration with VoIP SIP phone systems

AD633 can be perfectly integrated with VoIP telephone systems (IP-PBX) with SIP protocol and can be registered as a regular VoIP phone or P2P (Peer to Peer) without a PBX.

Pre-recorded messages

In the internal SD card are recorded sounds and messages for automatic or command sending onto speaker, also automatically at pre-set times.

Innovative features and performances

  • Launch of PA ads from any phone by calling the account of the IP SIP Speaker
  • Security code from keyboard to start the announcement
  • 2nd SIP accounts night call repeater function, sounds files freely customizable
  • Output for 2nd passive speaker 6W 8 Ohm to extend the served area or to generate a 100V-6W audio line
  • Double internal audio amplifier 2x6W (maximum output power using external power supply)
  • PoE (Power over Ethernet) 802.af standard, only one cable connection
  • 2 internal relays for external devices drives via LAN
  • 16 Multicast channels for broadcasting background music, silenced by ads, also in high quality (Linear Codec 44,1kHz)
  • Volumes adjustable separately for all audio channels Multicast/Ads/Ringtone
  • Internal microphone for environment listening (Monitor) and normal bidirectional communication
  • 1 alarm trigger input for one of the alternate functions:
        a) Generate a phone call and sends a message of alert (SIP SECURITY INFO CALL)
        b) Pre-recorded announcements launch from the speaker (Notice/Deterrence)
        c) "Push to Talk" feature for phone communication driven by local external button (not included)
  • 2 inputs for external call buttons to 2 programmable SIP numbers or IP addresses

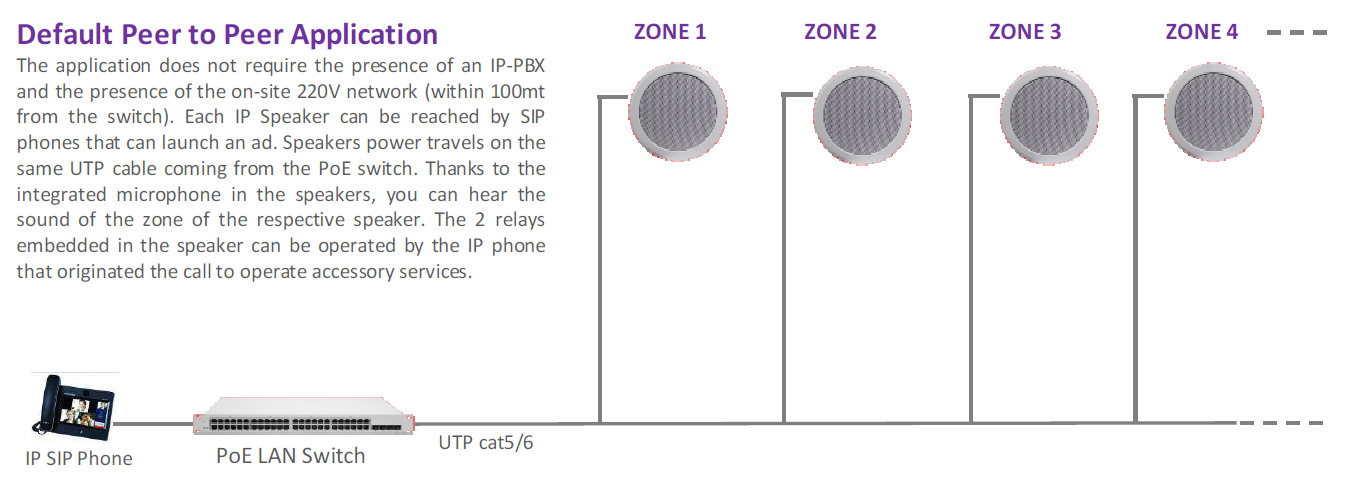

  • LAN P2P (Peer to Peer) operation even without PBX
  • Remote programming via integrated LAN Web Server
  • Compatible with all SIP standard IP-PBXs on the market
  • IP20 grade of protection

Technical features

LAN, protocols TCP/IP Network 10/100BaseTx, SIP 2.0
Grade of protection IP20
Power Supply PoE, Injector PoE or ext power supply
PoE 802.3af class 0 12,95W
External Power Supply (Opt.) 230Vac/12-24Vdc-1-2A
Security Password access, activity logs
Inputs from external alarm commands 1
Inputs for diversified call buttons 2
Contact rating of the 2 internal relays max 30Vdc – 1,5A
Technology IMX25 400MHz processor
Memory 256MB Ram, Micro-SD Flash 2GB
Housing material painted metal
Operating temperature from -20° to +55°C
Storage temperature from -20° to +65°C
Umidity up to 100%
Installation ceiling mount
Dimensions Diam. 200x92mm
Weight 1,1 Kg
Audio Amplifier “D” Class (10W PoE) 12W (Ext. Pow.)
Acoustic unit impedance 8 Ohm
Audio Bandwidth 80 – 15000Hz
Acoustic pressure (SPL) 102 dB A (1KHz at 1 meter)
Internal Microphone omnidirectional electret 30Hz-18KHz
Multicast Audio Streaming G711μ, G711a, G722, L16 16 / 44 kHz
Audio Communication Unidirectional and Bidirectional
Additional speakers 1 passive speaker 8 Ohm 6W
Messages/Sounds pre-recorded into the internal SD
Connection
SIP Server (IPPBX) or P2P (Peer To Peer)
Smartphone APP iOS, Android
Acoustic signaling call tones, ads Ding-dong
Visual signaling Active call led
Programming user-friendly web interface and passwords
Origin
entirely developed and manufactured in Italy
Warranty
2 years, possibility of extension (option)
Compatibility
CE, ROHS

Applications

Optionals

AA-39DL
Switching Power Supply 220Vca/12Vcc-1,0A
AA-39D1A
DIN Switching Power Supply 220Vca/15Vcc-1,0A
AA-39P4
PoE Injector 230Vac/ 48Vdc-12,95W
AA-36
Power relay repeater 230Vac/16A – 4KW
AA-699xx
Flash lights with light bulb Xenon or High Brightness LEDs. Ideal for be controlled by IP speaker relays SIP series AD630, with a call in progress they add a light signal to the acoustic signal
AD320/30
DIN transformer 100V-30W audio line
AD32
Audio signal isolation transformer, ideal for signal relaunch to remote amplifiers
AD333/12XTP
Built-in/ceiling passive speaker 8 Ohm 12W with Transformer 12/6/3 W response 80Hz - 20KHz, Diameter 200x160 mm
AD330/xx
Passive speakers 8 Ohm or 100V various power
